Thirty-nine models in production. Specifications are the standard configuration; focal length, interface and housing can be adapted.
Two-axis stabilised, pairing 8.5 mm fixed lens at 2688×1520 visible with 640×512 uncooled thermal (19 mm). Detection reaches 0.73 km on a person and 3.3 km on a vehicle, with recognition at 0.2 km and 0.8 km; the unit weighs 260 g. The go-to for FPV and man-portable platforms.
Two-axis stabilised with 8.5 + 25 mm dual focal lengths at 2688×1520 on a common axis. Detection reaches 2 km on a person and 9.2 km on a vehicle, with recognition at 0.5 km and 2.3 km; the unit weighs 240 g. Two focal lengths for long-range daytime observation.
Two-axis stabilised, dual visible (8 + 25 mm fixed lens at 1920×1080) plus 640×512 uncooled thermal (25 mm), plus a 3 km laser rangefinder. Detection reaches 1.1 km on a person and 6.9 km on a vehicle, with recognition at 0.29 km and 1.7 km; the unit weighs 500 g. Four sensors in one housing for micro platforms.
Three-axis stabilised, fixed and zoom visible (zoom 15.3–49.7 mm at 8000×6000) with 640×512 uncooled thermal (19 mm), plus a 1.5 km laser rangefinder. Detection reaches 3.8 km on a person and 15 km on a vehicle, with recognition at 0.9 km and 5.7 km; the unit weighs 400 g. 33 MP fixed plus zoom, covering search and identification.
Three-axis stabilised, pairing 10× zoom 4.7–47 mm at 1920×1080 visible with 640×512 uncooled thermal (19 mm). Detection reaches 1.8 km on a person and 10 km on a vehicle, with recognition at 0.45 km and 2.7 km; the unit weighs 800 g. 10× dual-sensor entry-level day and night payload.

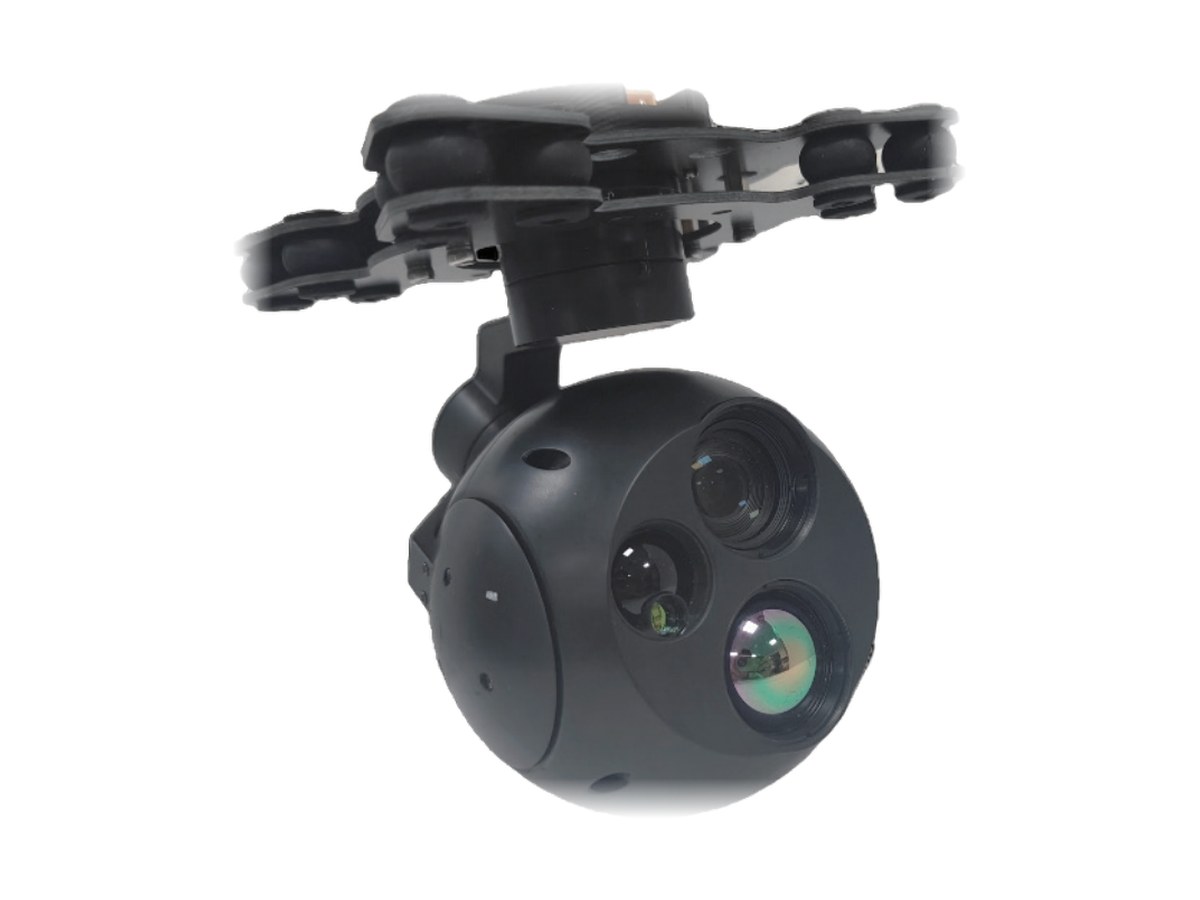

Three-axis stabilised, pairing 10× zoom 4.7–47 mm at 1920×1080 visible with 640×512 uncooled thermal (19 mm), plus a 1.5 km laser rangefinder. Detection reaches 1.8 km on a person and 10 km on a vehicle, with recognition at 0.45 km and 2.7 km; the unit weighs 800 g. 10× zoom with rangefinder in a compact triple-sensor body.

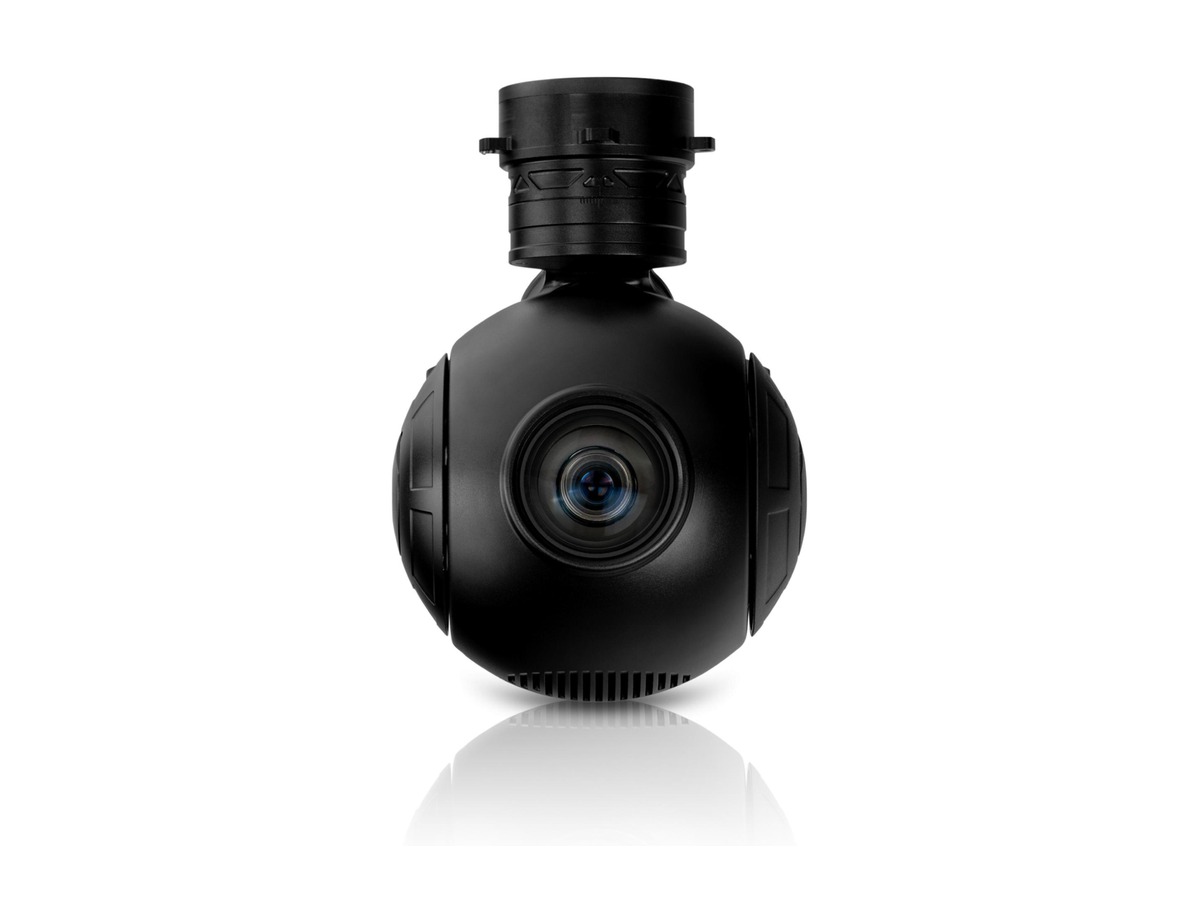

Three-axis stabilised, single visible channel at 40× zoom 4.25–170 mm at 1920×1080. Detection reaches 6.5 km on a person and 17 km on a vehicle, with recognition at 1.6 km and 9.8 km; the unit weighs 1.0 kg. 40× single-channel optics in a 1 kg housing.

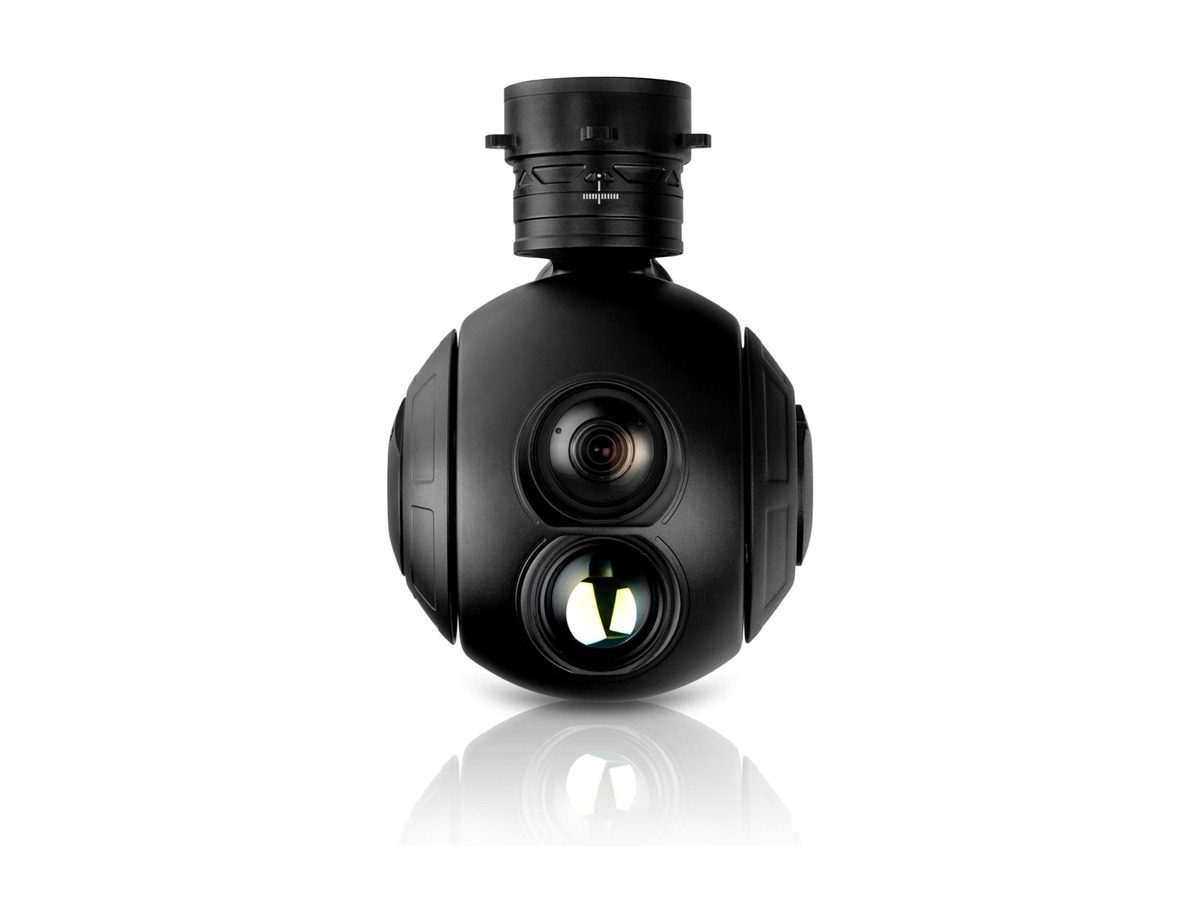

Three-axis stabilised, pairing 30× zoom 4.3–129 mm at 1920×1080 visible with 640×512 uncooled thermal (25 mm). Detection reaches 6 km on a person and 15 km on a vehicle, with recognition at 1.5 km and 9 km; the unit weighs 1.0 kg. 30× dual-sensor optics for general day and night reconnaissance.
Three-axis stabilised, pairing 30× zoom 4.3–129 mm at 1920×1080 visible with 640×512 uncooled thermal (25 mm), plus a 1.5 km laser rangefinder. Detection reaches 6 km on a person and 15 km on a vehicle, with recognition at 1.5 km and 9 km; the unit weighs 1.0 kg. 30× triple-sensor with ranging in the same line of sight.

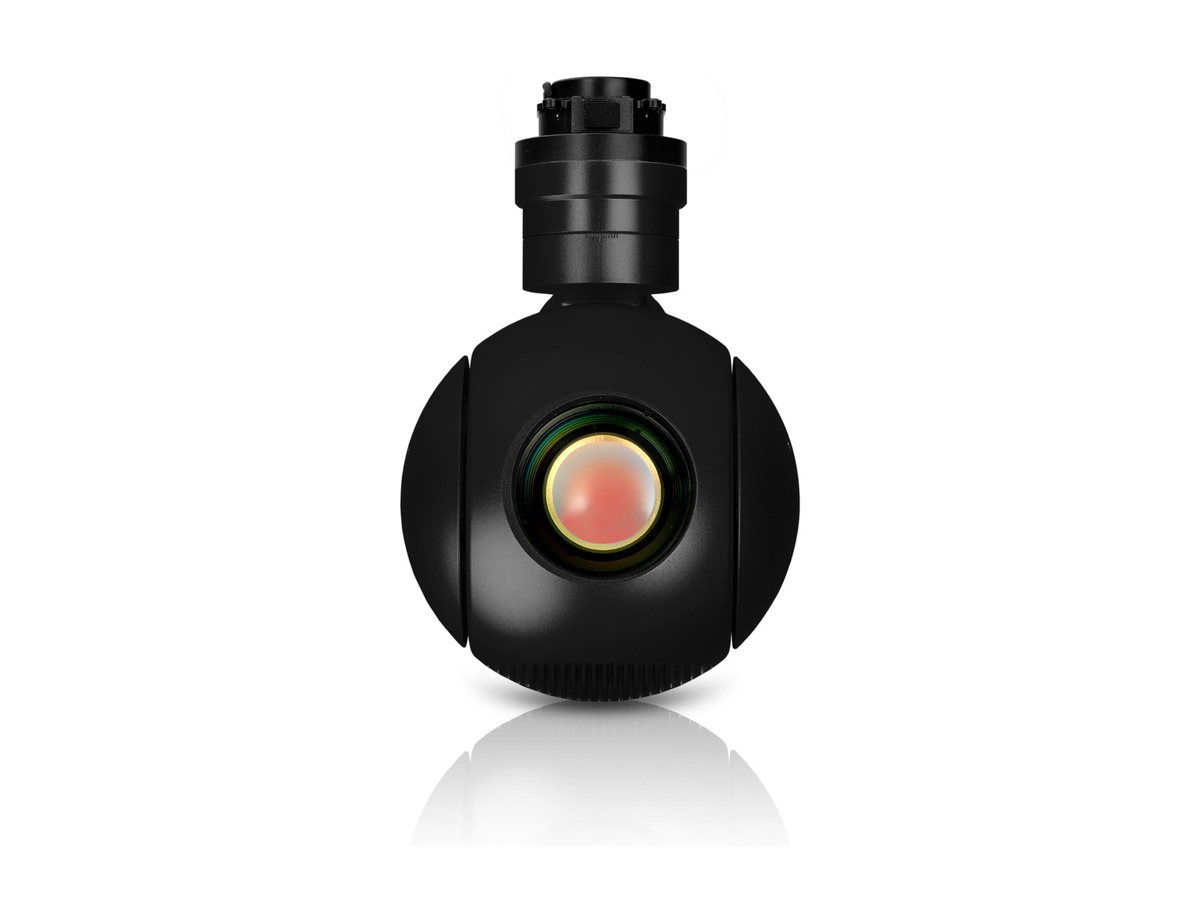

Three-axis stabilised, thermal-only payload with 1280×1024 uncooled thermal (50 mm). Detection reaches 1.4 km on a person and 6 km on a vehicle, with recognition at 0.5 km and 2.1 km; the unit weighs 1.0 kg. Thermal-only channel for zero-light conditions.
Three-axis stabilised, pairing 30× zoom 4.3–129 mm at 1920×1080 visible with 640×512 uncooled thermal (35 mm). Detection reaches 6 km on a person and 15 km on a vehicle, with recognition at 1.5 km and 9 km; the unit weighs 1.1 kg. High-resolution IR paired with 30× visible optics.
Three-axis stabilised, pairing 30× zoom 4.3–129 mm at 1920×1080 visible with 640×512 uncooled thermal (35 mm), plus a 3 km laser rangefinder. Detection reaches 6 km on a person and 15 km on a vehicle, with recognition at 1.5 km and 9 km; the unit weighs 1.2 kg. Triple-sensor with 3 km ranging, a border-patrol staple.
Three-axis stabilised, pairing 40× zoom 4.25–170 mm at 1920×1080 visible with 640×512 uncooled thermal (35 mm). Detection reaches 6.5 km on a person and 17 km on a vehicle, with recognition at 1.6 km and 9.8 km; the unit weighs 1.4 kg. 40× dual-sensor optics for long-range identification.
Three-axis stabilised, pairing 40× zoom 4.25–170 mm at 1920×1080 visible with 640×512 uncooled thermal (35 mm), plus a 3 km laser rangefinder. Detection reaches 6.5 km on a person and 17 km on a vehicle, with recognition at 1.6 km and 9.8 km; the unit weighs 1.4 kg. 40× triple-sensor, the long-range reconnaissance standard.
Three-axis stabilised, pairing 30× zoom 4.3–129 mm at 1920×1080 visible with 640×512 uncooled thermal (50 mm), plus a 3 km laser rangefinder. Detection reaches 6 km on a person and 15 km on a vehicle, with recognition at 1.5 km and 9 km; the unit weighs 1.5 kg. A 50 mm thermal lens behind 30× visible optics.

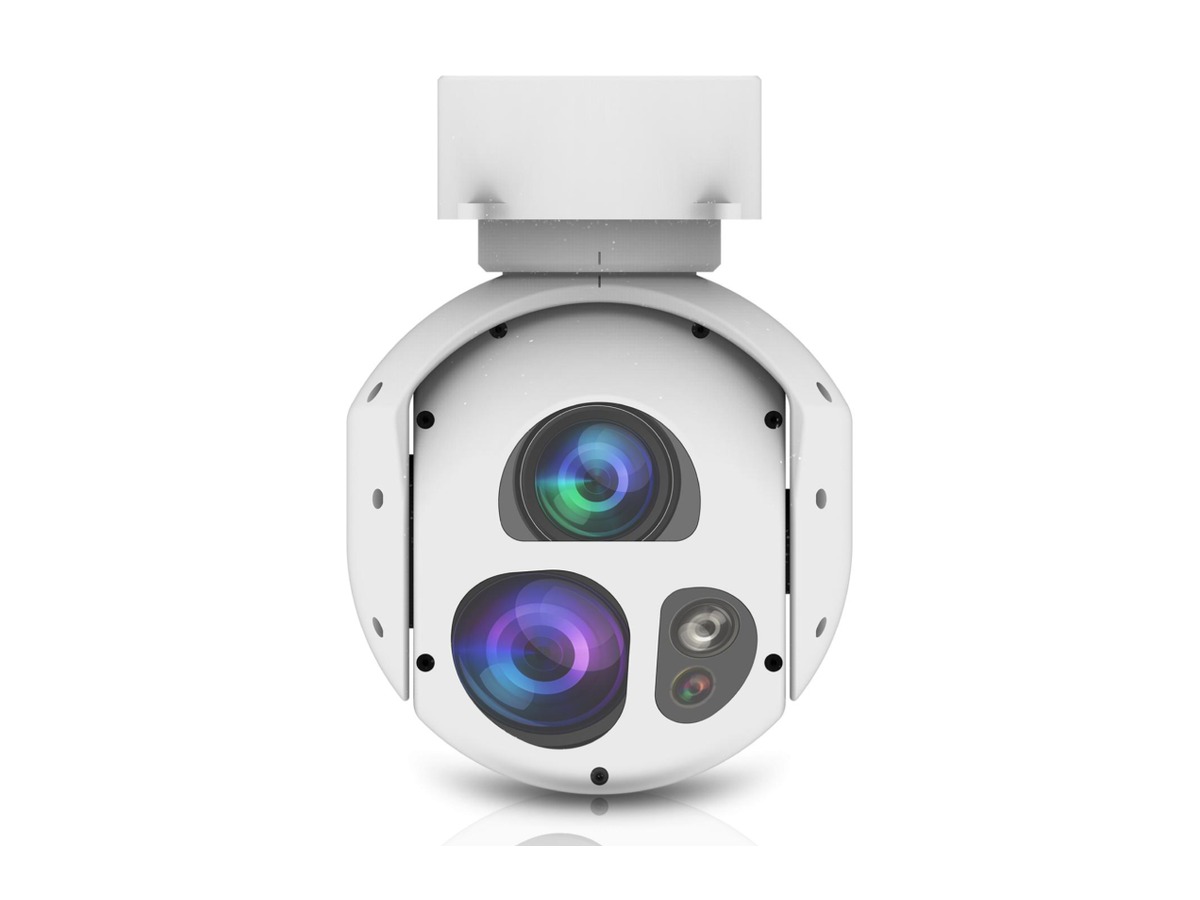

Two-axis stabilised, pairing 30× zoom 4.3–129 mm at 1920×1080 visible with 640×512 uncooled thermal (35 mm), plus a 3 km laser rangefinder. Detection reaches 6 km on a person and 15 km on a vehicle, with recognition at 1.5 km and 9 km; the unit weighs 1.6 kg. A sealed two-axis triple-sensor pod for medium UAVs.
Two-axis stabilised, pairing 30× zoom 4.3–129 mm at 1920×1080 visible with 640×512 uncooled thermal (55 mm), plus a 5 km laser rangefinder. Detection reaches 6 km on a person and 15 km on a vehicle, with recognition at 1.5 km and 9 km; the unit weighs 2.2 kg. 5 km ranging for border and maritime surveillance.
Two-axis stabilised, pairing 30× zoom 4.3–129 mm at 1920×1080 visible with 1280×1024 uncooled thermal (75 mm), plus a 5 km laser rangefinder. Detection reaches 6 km on a person and 15 km on a vehicle, with recognition at 1.5 km and 9 km; the unit weighs 2.8 kg. A 1.3 MP thermal core for sharper long-range identification.
Two-axis stabilised, pairing 17.5× zoom 6.8–120 mm at 3840×2160 visible with 1280×1024 uncooled thermal (75 mm), plus a 5 km laser rangefinder. Detection reaches 9 km on a person and 20 km on a vehicle, with recognition at 2.2 km and 13 km; the unit weighs 4.1 kg. 4K visible imagery paired with a 1.3 MP thermal core.
Two-axis stabilised, pairing 30× zoom 4.3–129 mm at 1920×1080 visible with 640×512 cooled MWIR thermal (40–220 mm zoom), plus a 9.5 km laser rangefinder. Detection reaches 6 km on a person and 15 km on a vehicle, with recognition at 1.5 km and 9 km; the unit weighs 5 kg. Cooled MWIR imaging with 9.5 km laser ranging.
Two-axis stabilised, pairing 55× zoom 4.25–234 mm at 1920×1080 visible with 640×512 cooled MWIR thermal (20–275 mm zoom), plus a 9 km laser rangefinder. Detection reaches 10.1 km on a person and 25 km on a vehicle, with recognition at 2.7 km and 16 km; the unit weighs 7 kg. 55× zoom alongside a cooled MWIR channel.
Four-axis stabilised, pairing 30× zoom 4.3–129 mm at 1920×1080 visible with 640×512 cooled MWIR thermal (40–220 mm zoom), plus a 15 km laser rangefinder. Detection reaches 6 km on a person and 15 km on a vehicle, with recognition at 1.5 km and 9 km; the unit weighs 10 kg. Four-gimbal torque motors with 15 km ranging.
Two-axis stabilised, pairing 55× zoom 4.25–234 mm at 1920×1080 visible with 640×512 uncooled thermal (20–120 mm zoom), plus a 9.5 km laser rangefinder. Detection reaches 10.1 km on a person and 25 km on a vehicle, with recognition at 2.7 km and 16 km; the unit weighs 10 kg. 55× visible optics with a continuous-zoom IR channel.
Two-axis stabilised, pairing 30× zoom 4.3–129 mm at 1920×1080 visible with 640×512 uncooled thermal (35 mm), plus a 5 km laser designator. Detection reaches 6 km on a person and 15 km on a vehicle, with recognition at 1.5 km and 9 km; the unit weighs 2.5 kg. An entry laser designator for precision guidance.
Two-axis stabilised, pairing 30× zoom 4.3–129 mm at 1920×1080 visible with 640×512 cooled MWIR thermal (40–220 mm zoom), plus a 8 km laser designator. Detection reaches 6 km on a person and 15 km on a vehicle, with recognition at 1.5 km and 9 km; the unit weighs 5.5 kg. Cooled thermal imaging with a 40 mJ designator.
Two-axis stabilised, pairing 13× zoom 15–200 mm at 1920×1080 visible with 640×512 cooled MWIR thermal (15–300 mm zoom), plus a 8 km laser designator. Detection reaches 7.2 km on a person and 16.7 km on a vehicle, with recognition at 1.8 km and 10.7 km; the unit weighs 15 kg. Long focal length in the 15 kg class.
Four-axis stabilised, 30× zoom 10–300 mm at 1920×1080 visible, 640×512 SWIR and 640×512 cooled MWIR thermal (15–330 mm zoom) on one axis, plus a 15 km laser designator; the unit weighs 22 kg. The four-axis, four-sensor 22 kg flagship.

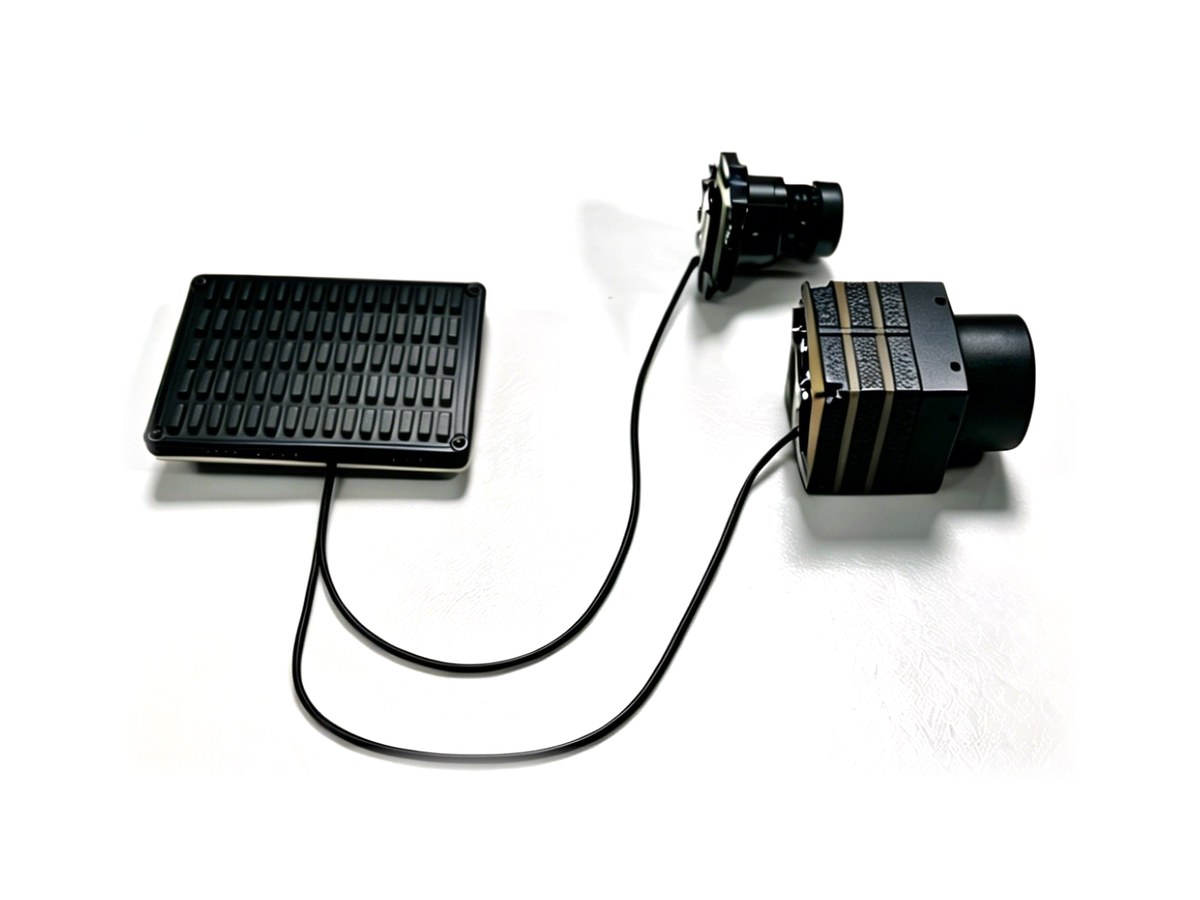

RK3576 SoC with a 6 TOPS NPU and ≤35 ms tracking latency on a 53×40×10 mm board, built for FPV and industrial UAVs.

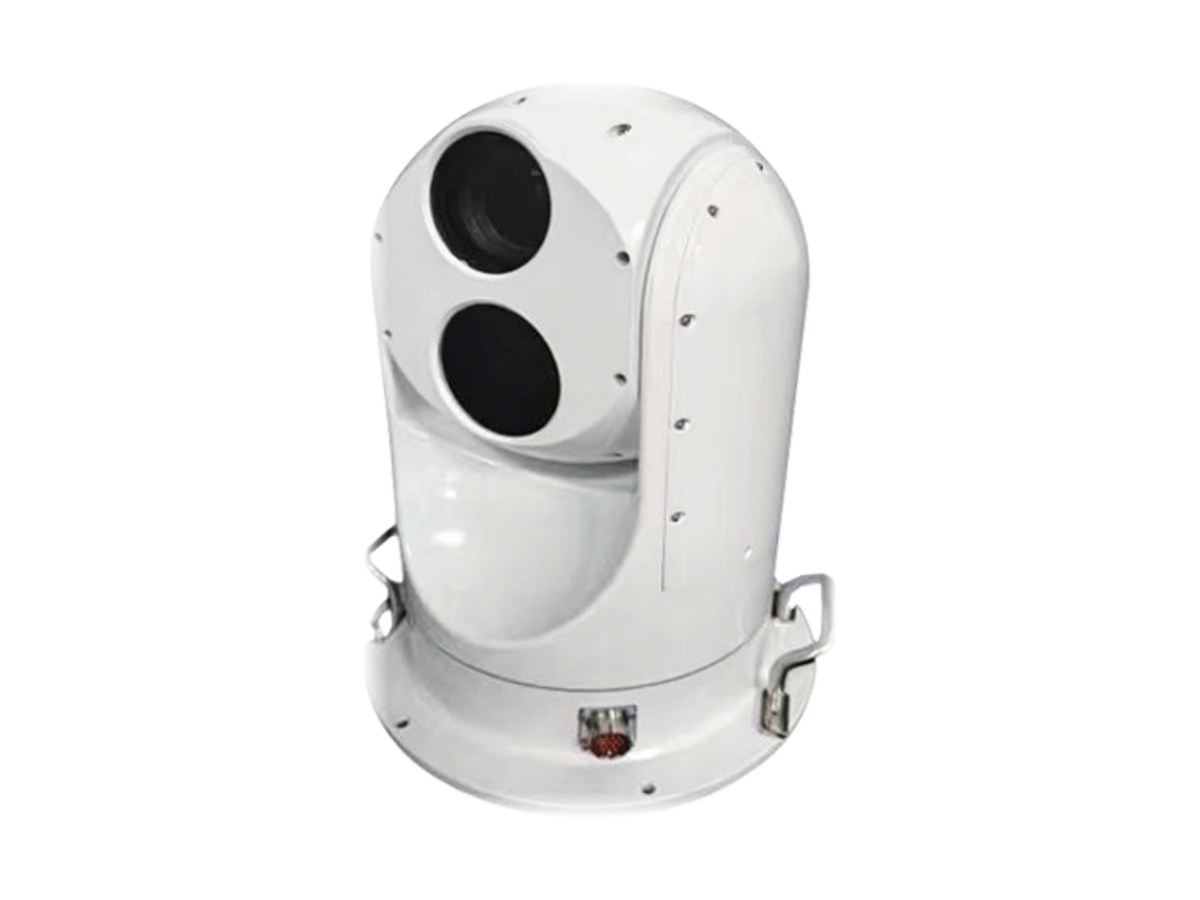

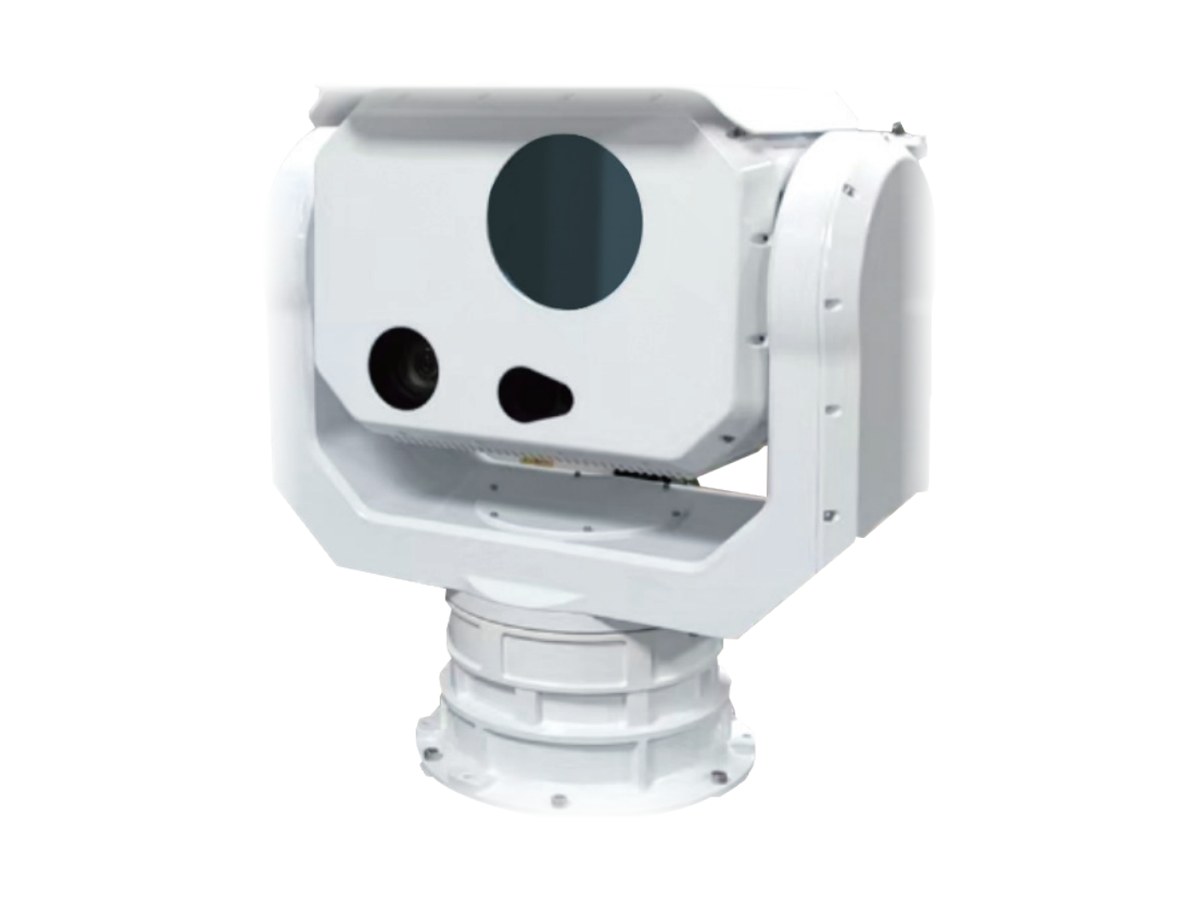

60× optical zoom TV plus uncooled LWIR in a Ø300×405 mm, 20 kg housing — built for mast, vehicle and fixed-site 24×365 duty.
30× TV, 75 mm LWIR and a 5 km laser rangefinder, with a fast steering mirror that scans 360° in 3 s — sealed to IP66.
16 mm TV plus 25 mm IR at ≤280 g, 0.1 mrad stabilisation and ≥200 g launch shock resistance.
3840×2560 visible plus 640×512 thermal, three-axis stabilised, 6 TOPS on-board AI, ≤250 g.
4K TV with 10× zoom, 19 mm thermal and a 1500 m laser rangefinder in a three-axis pod at ≤700 g.
30× TV, 25 mm thermal and a 2000 m laser rangefinder with a customisable mechanical interface, ≤1100 g.

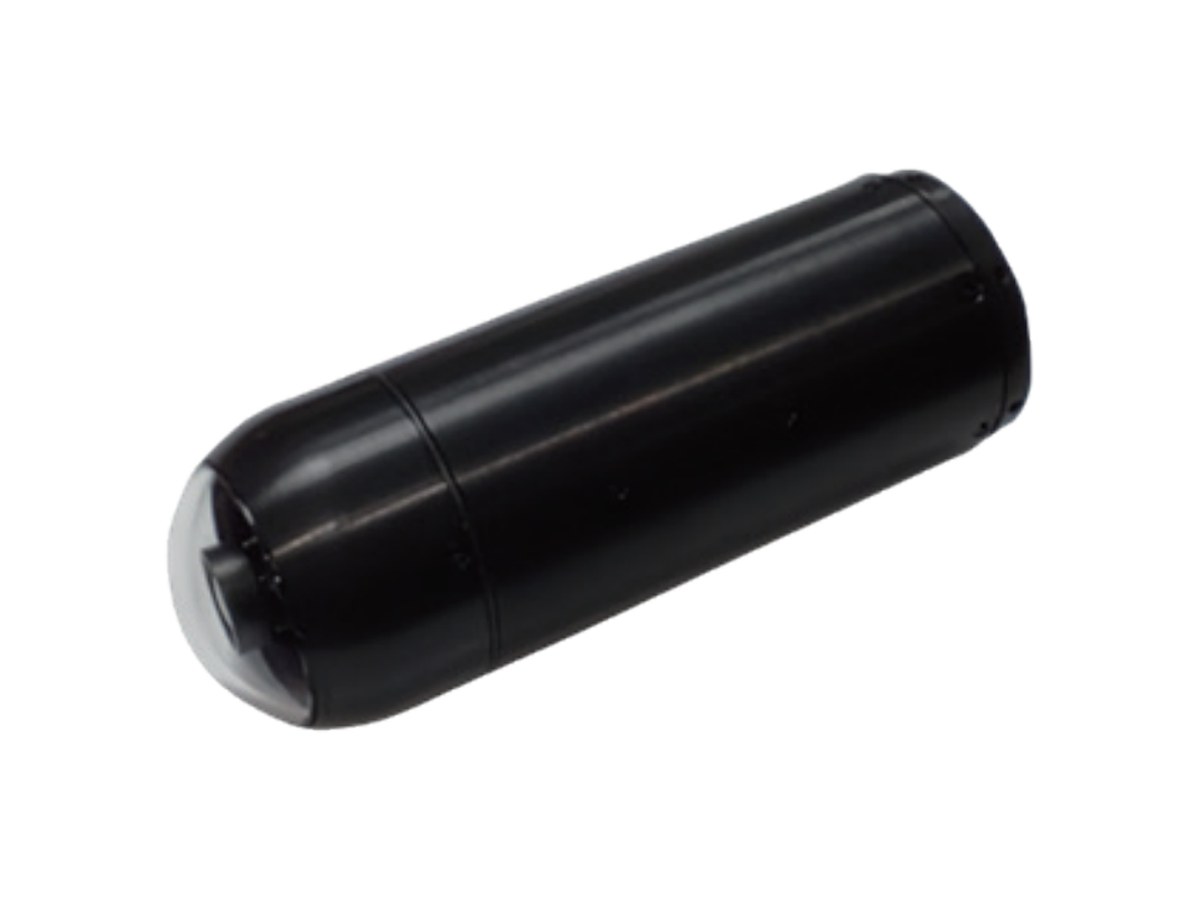

Two-axis gyro-stabilised visible-light micro pod at ≤190 g including damper, 16 mm lens, rated to 20 m/s on FPV airframes.
Two-axis gyro-stabilised visible-light micro pod, Ø88×94.4 mm at ≤220 g, rated to 200 m/s flight.
25 mm fixed-focus visible seeker, Ø40×120 mm at ≤200 g, rated for ≥100 g launch shock.
36 mm visible plus 45 mm thermal in a Ø93×123 mm, ≤680 g body with a fuze trigger switch.

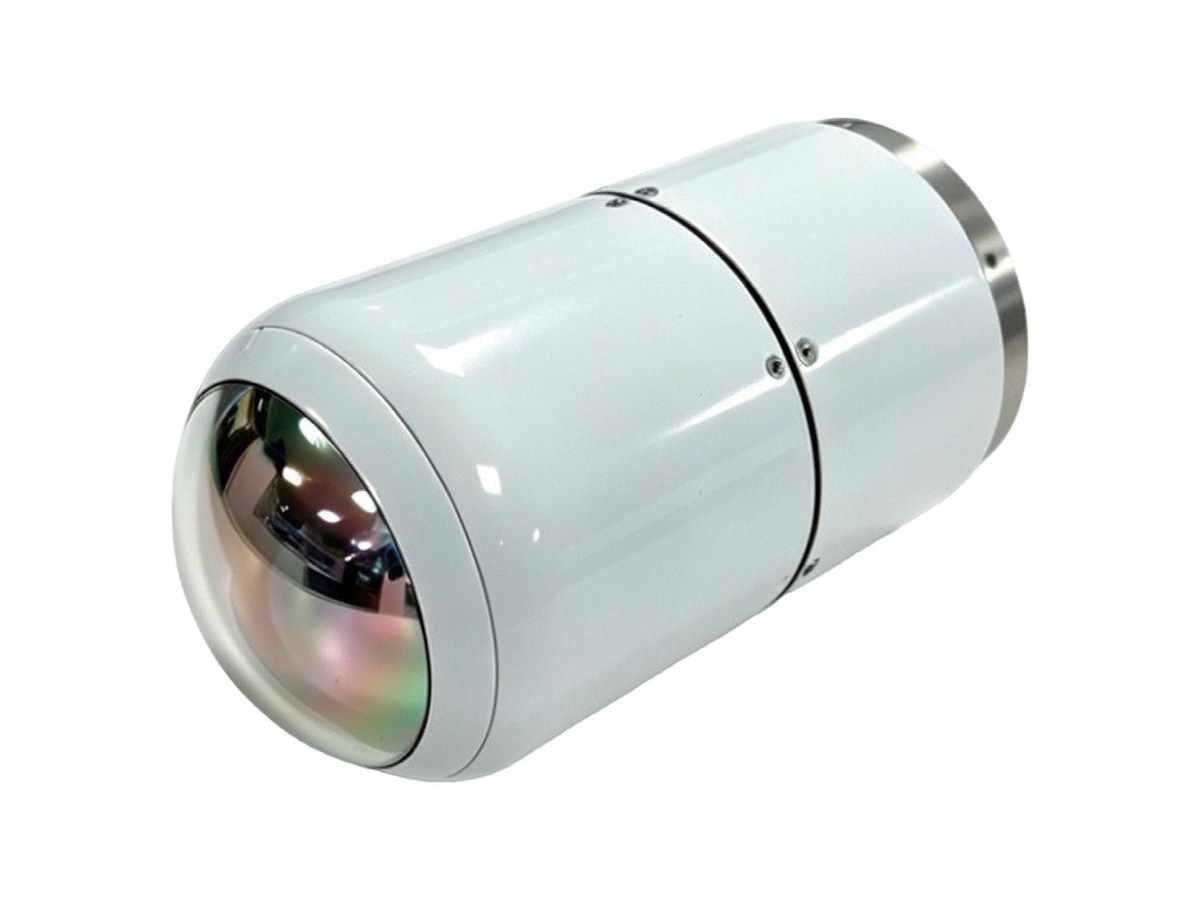

35 mm uncooled thermal in a Ø70×130 mm, <600 g body, suited to airframes up to Mach 2.
Send the airframe, required range, weight budget and quantity. You get a configuration proposal and quotation within three working days.
